Tube Mill Machines
ERW Tube Mills
(Electric Resistance Welded) from 12.7mm ~ 720mm
Process Flow:
Steel Coil* → Double-head De-coiler* → Strip-head shear & Butt welder station → Horizontal Spiral Accumulator* → Forming Section（Main driving unit + Flattening unit & Feeding guide + Forming section) → Welding Section (Seam guide stand + High frequency induction welding system + Squeeze roll welding stand + External bead scarfing + Seam grinding stand) → Emulsion Water Cooling Section → Sizing Mill (Main driving unit + Sizing section + Speed testing unit + Turk heads straightener) → Computer Flying → Run-out table & Packing Device.
(* Material thickness dependant)

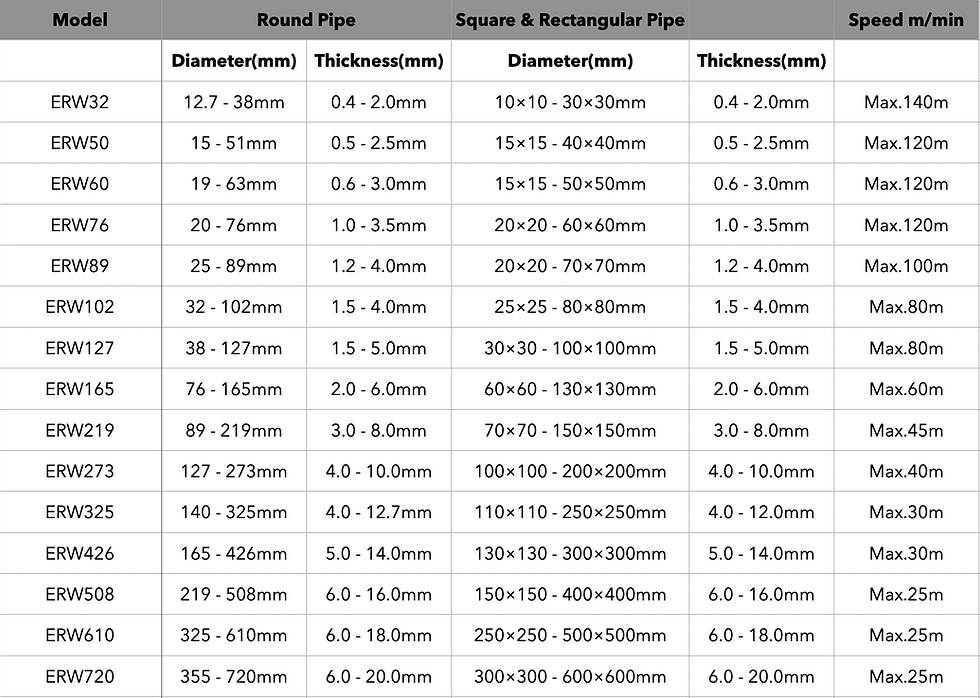

Model List of Tube Mill
Direct Forming Lines:
ERW 40mm x 40mm ~ 500mm x 500mm
Process Flow:
Steel Coil* → De-coiler* → Coil Opening* → Preliminary Levelling → Shearing & Welding → Spiral Accumulator* → Forming → H.F. Welding, Deburring → Cooling → Sizing → Straightening (Turk Head) → Cutting → Packing → Storage
(* Material thickness dependant)

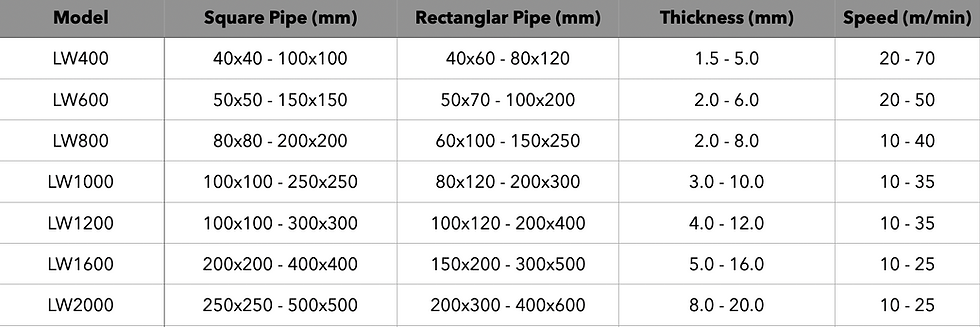

Model List of Tube Mill
Slitting & Cut to Length Lines:
From:400mm x 0.2mm ~ 2500mm x 25mm
Process Flow:
Coil-loading* → Double-mandrel de-coiling*→ Coil-end-feeding & shovelling* → Double-roller pinch feeding/three-roller levelling → End-cutting → Hole Accumulator 1 → Strip-aligning → Disk shearing → Scrap reeling → Hole Accumulator 2 → Pre-separator/Tensioner → Recoiling → Coils-discharging → Hydraulic control → Electric control
(* Material thickness dependant)

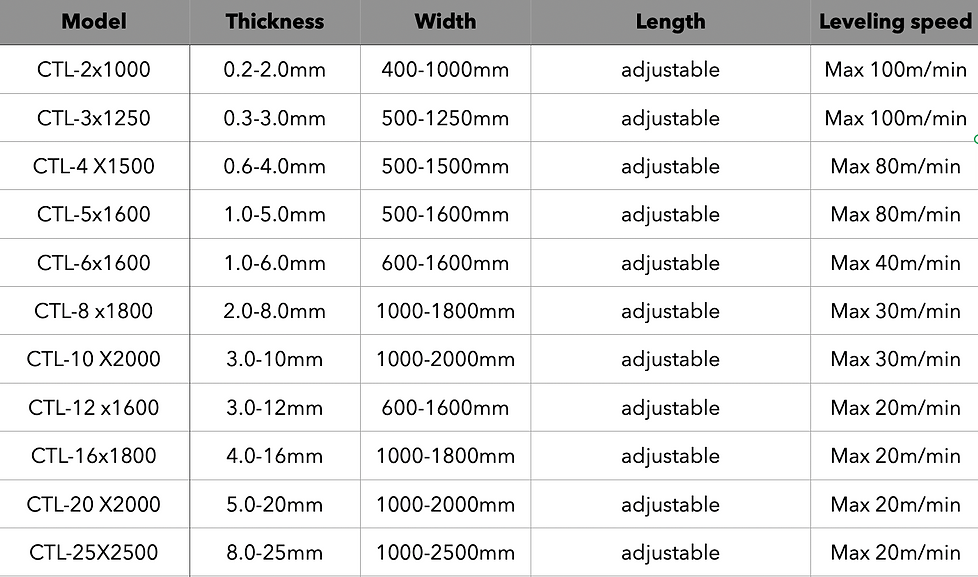

Model List of Tube Mill
Note: The data in the form is a reference according to general ranges, we always design and make each sheet line according to each customer's specific requirement, so each customer can buy their own well-content coil Cut to Length Line from us.
Profile Form Lines:
Cold Roll Forming production line is using the Cold Roll Forming Technology to produce various shapes of Section Steels; mainly used in producing Steel Sheet Piles, steel structure C, Z purlin; floor boards and roofing, wall panels; transport industry, high-speed Highway guardrail plate; automotive industry car panels, bumpers, car beams; Logistics industry shelf column, support beam; Cable bridge equipment, coal mine special W support; wave plate and edge beam equipment of three-dimensional garage industry. We can also design and produce various of precision Cold Forming Profiles Line according to user's requests.
